| D7018 Overhaul Gallery Summer 2013 |
| Click on an image to enlarge it |

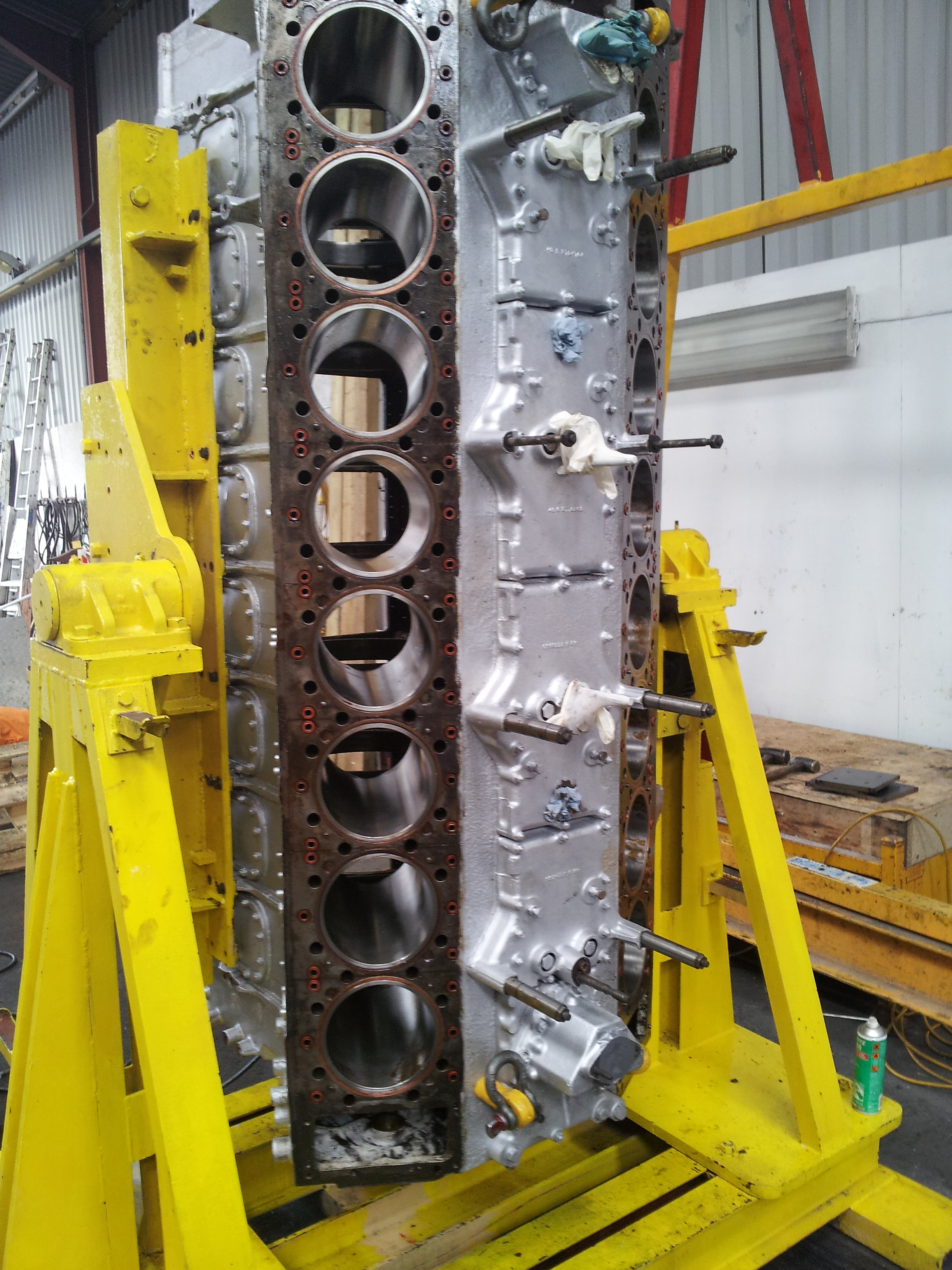

| The block with new liners fitted after pressure testing |

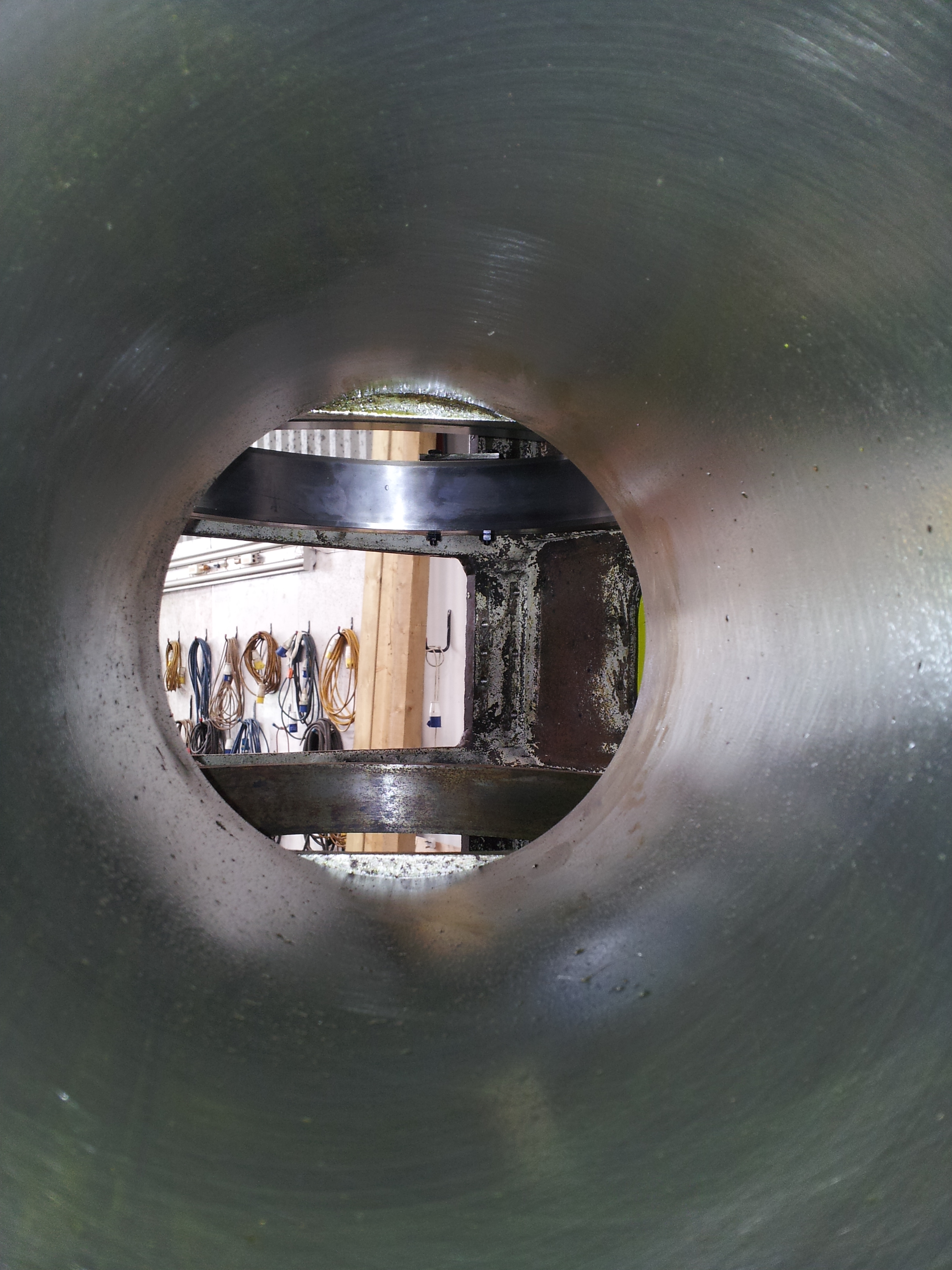

| An unusual view from the crankcase looking out |

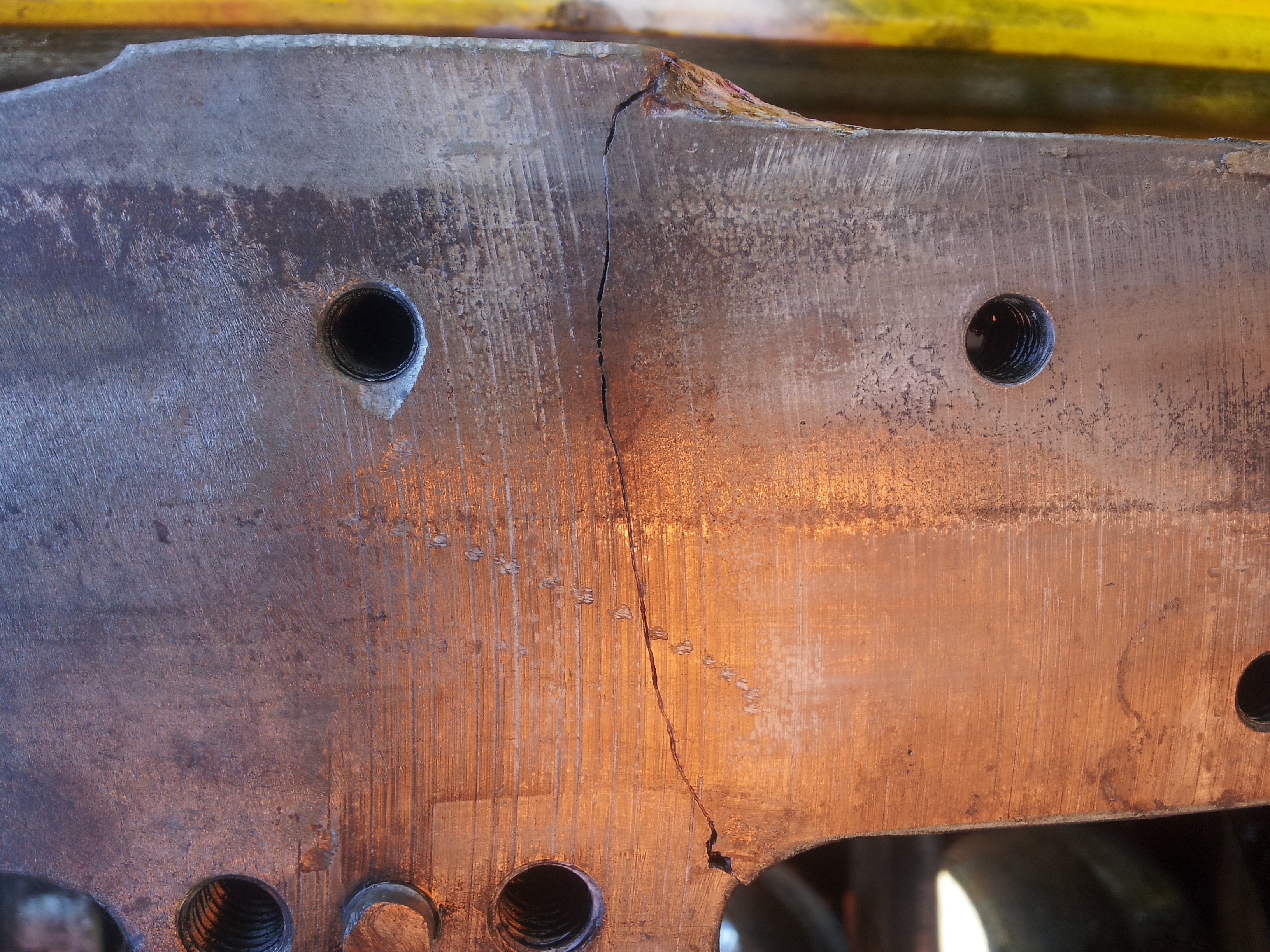

| The fatal crack in the crankcase |

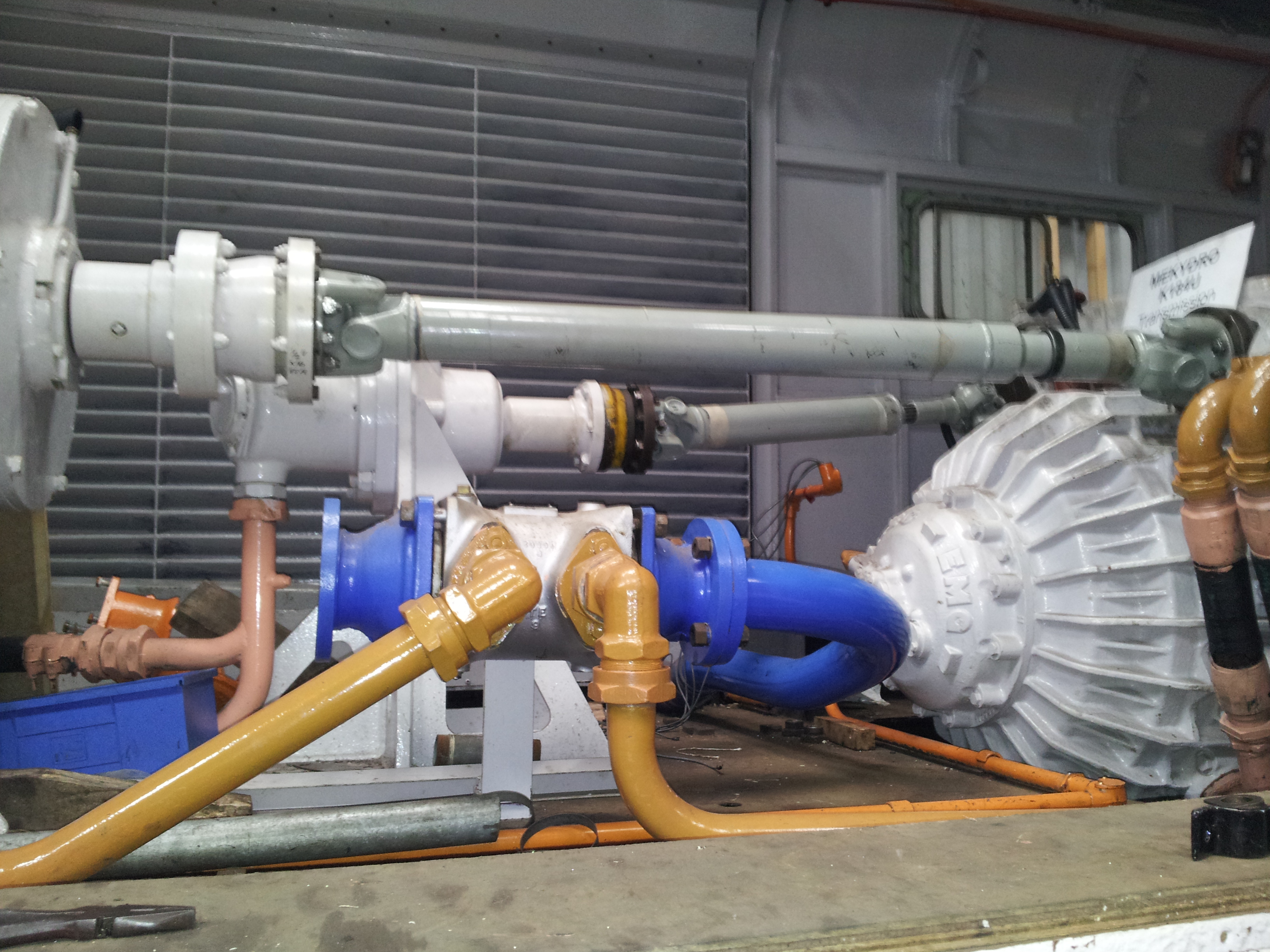

| The view into the cooler group aperture showing the recently fitted cardan shafts and mostly complete pipework |

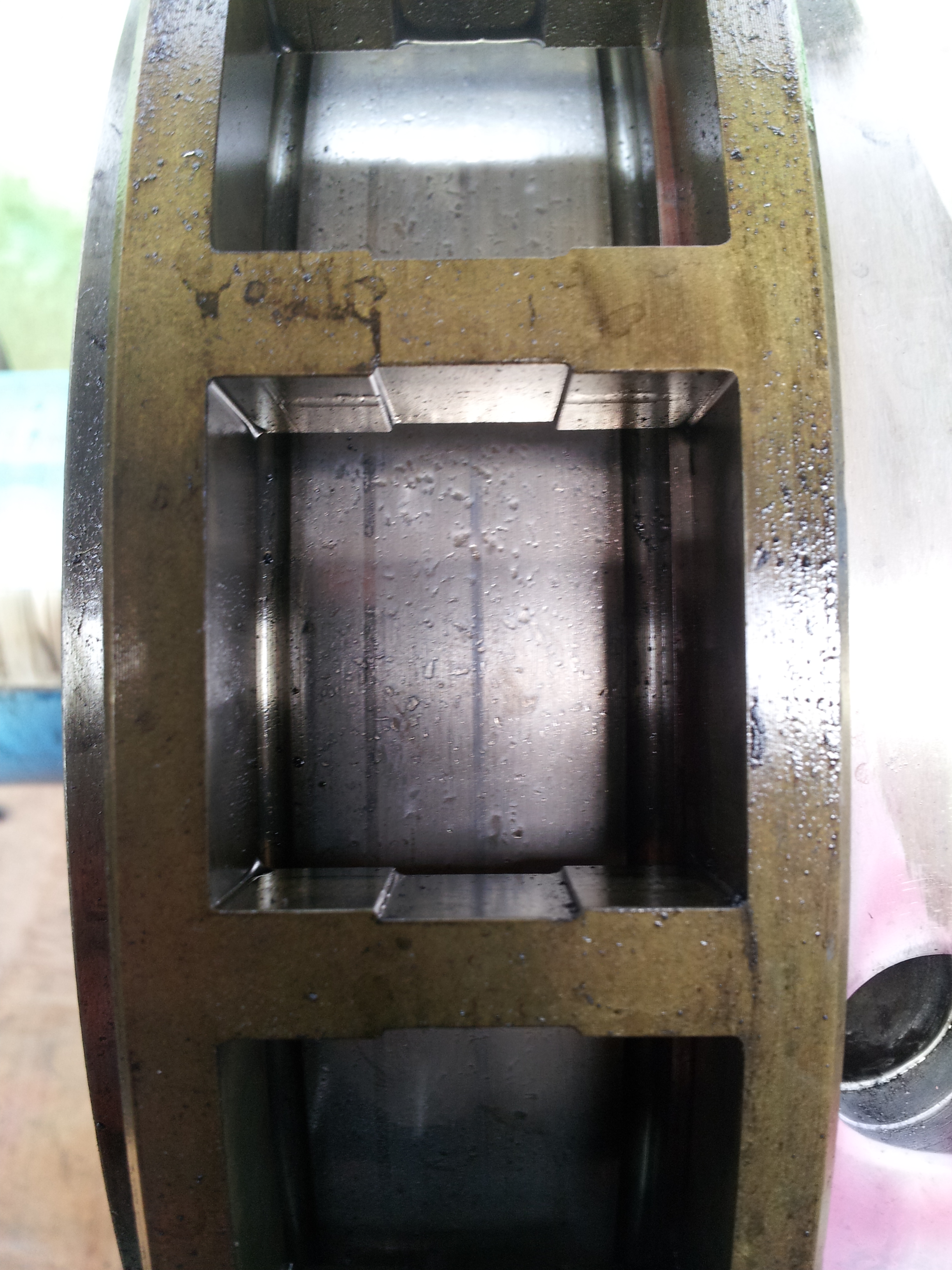

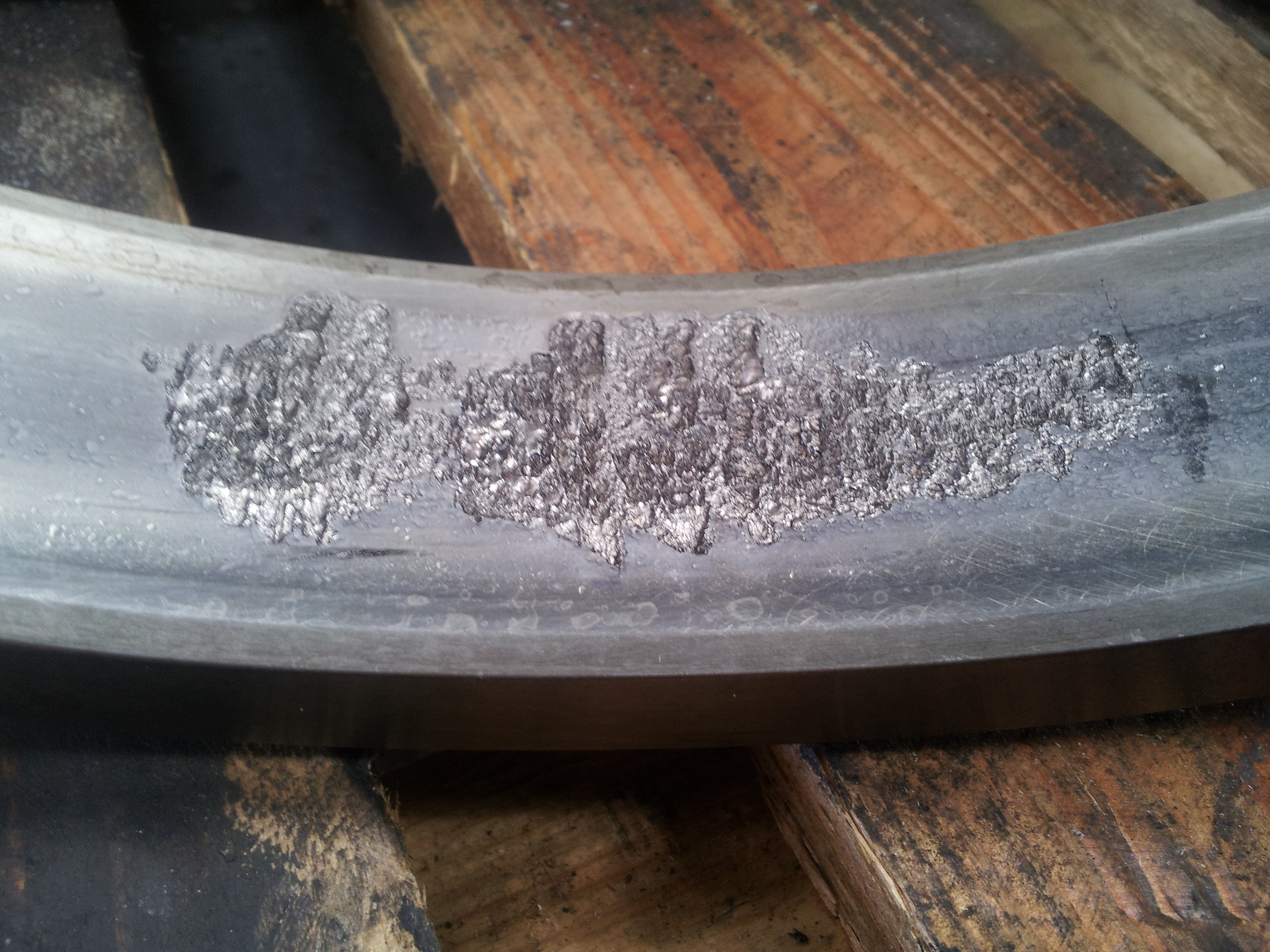

| Damaged crankshaft bearing outer race |

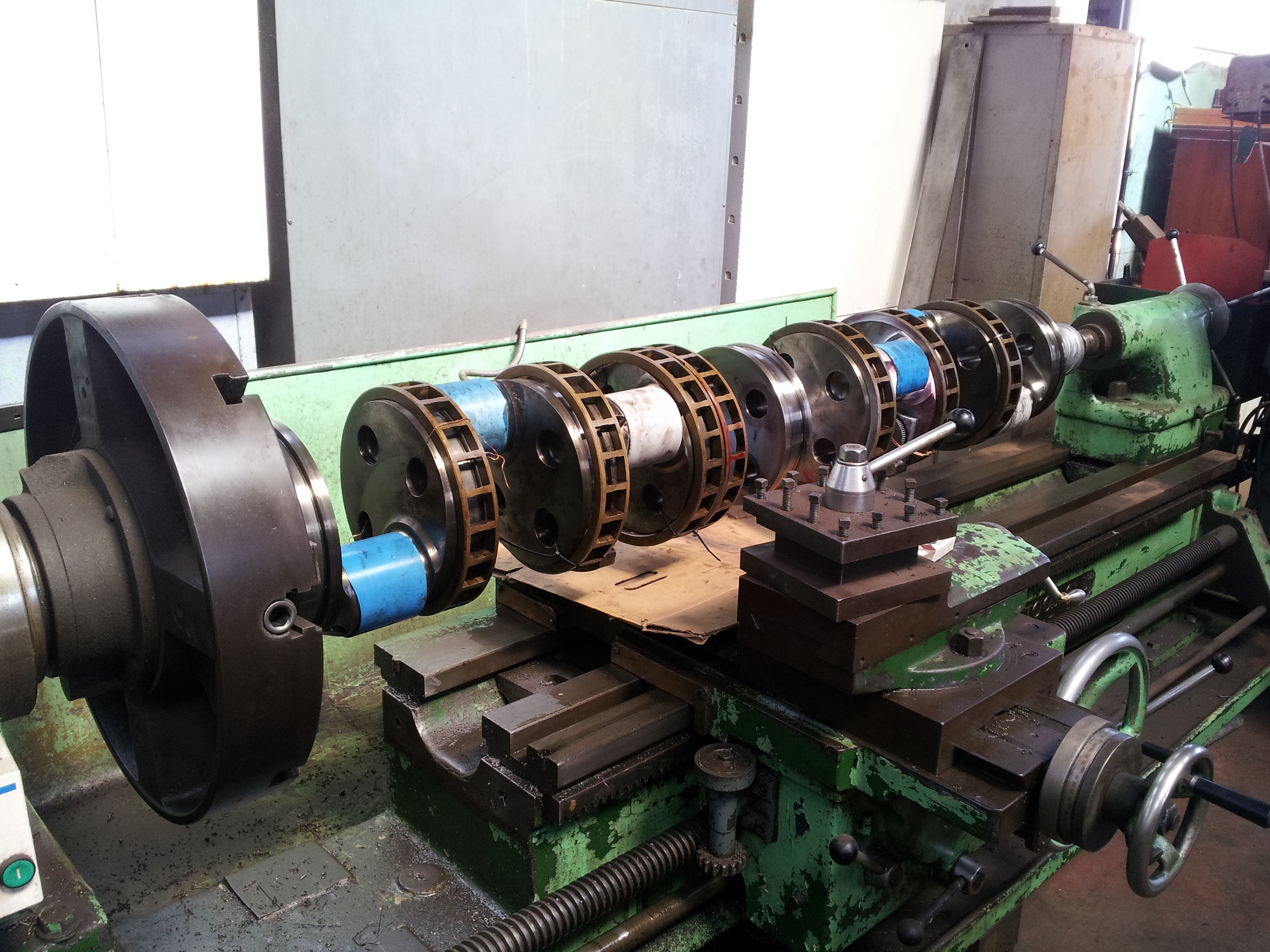

| The crankshaft mounted in a lathe (just) for attention to damaged bearings |

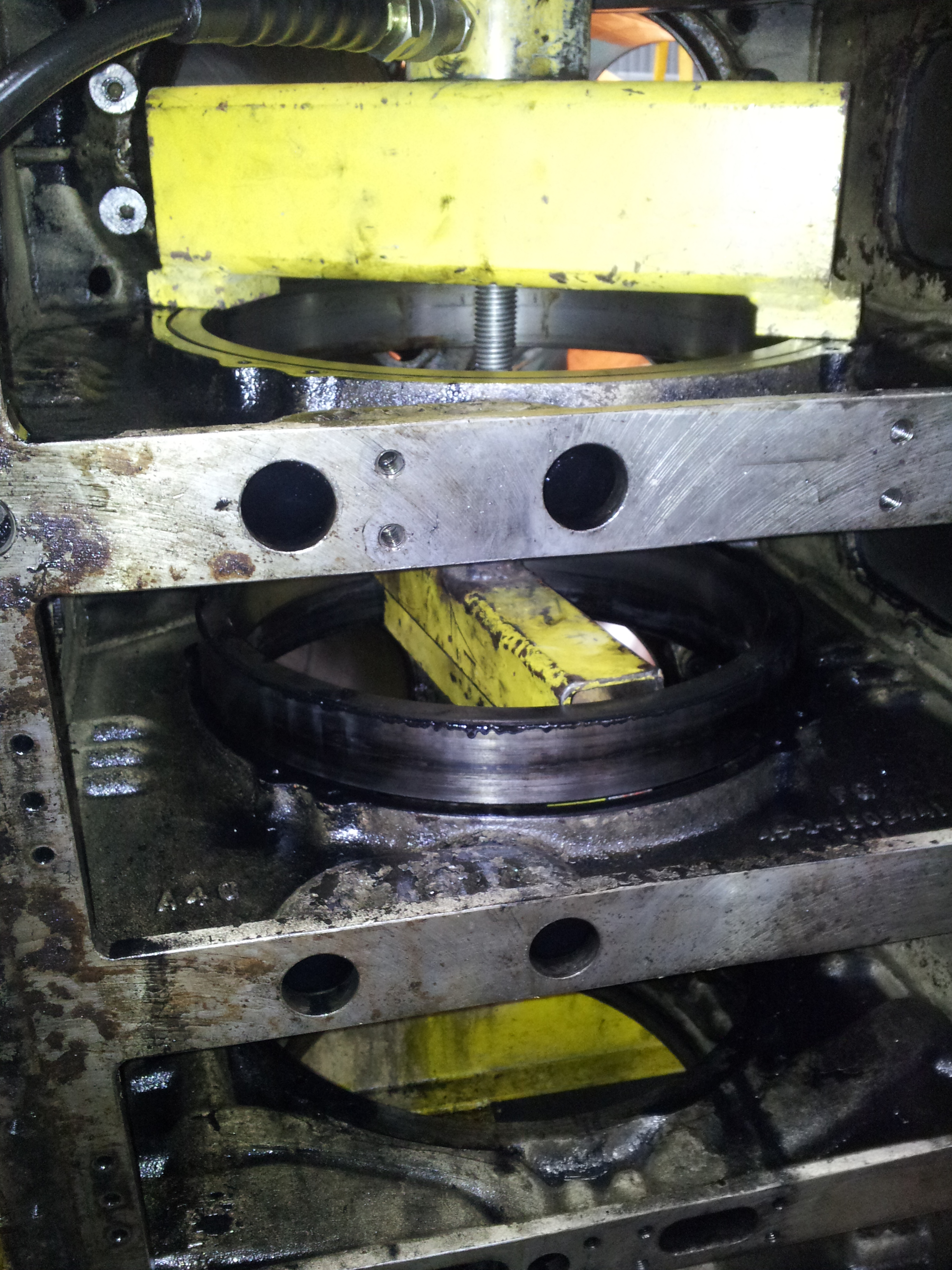

| Crankshaft bearing outer races being removed from the block by hydraulic puller |
| A crankshaft bearing inner race requiring attention |

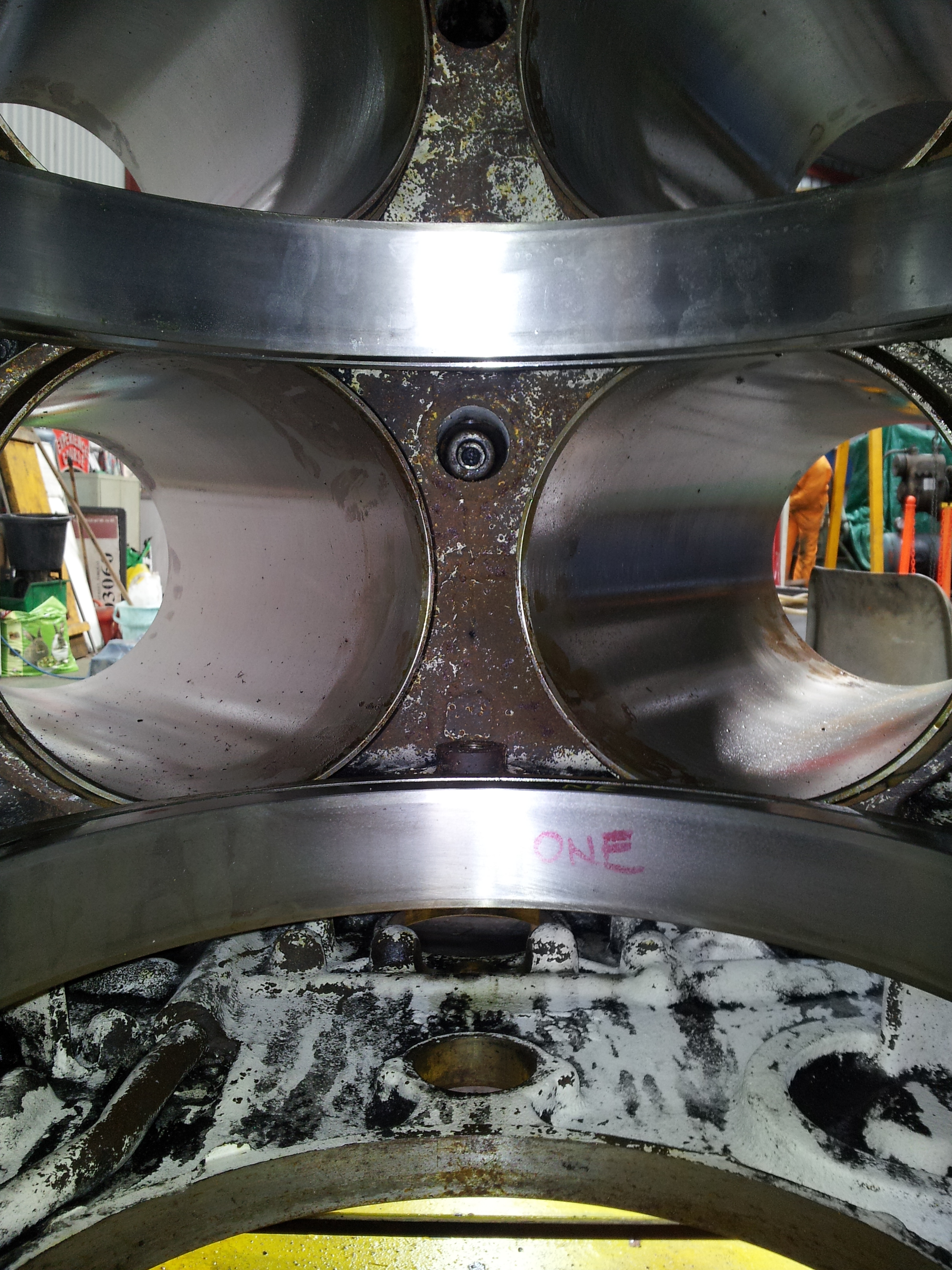

| An interesting view of 2 main bearings through a newly installed cylinder liner |

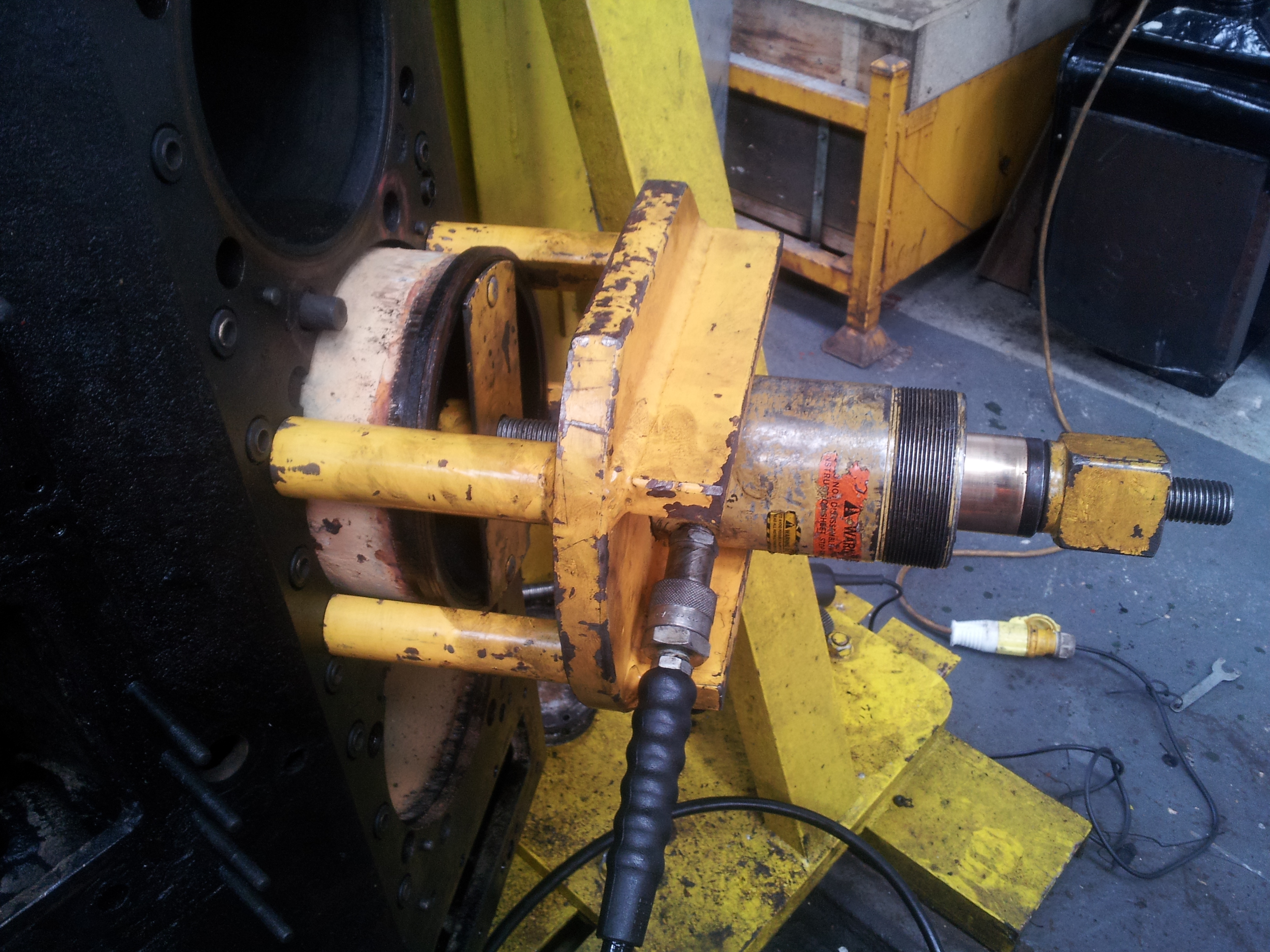

| The hydraulic puller in action, removing cylinder liners |

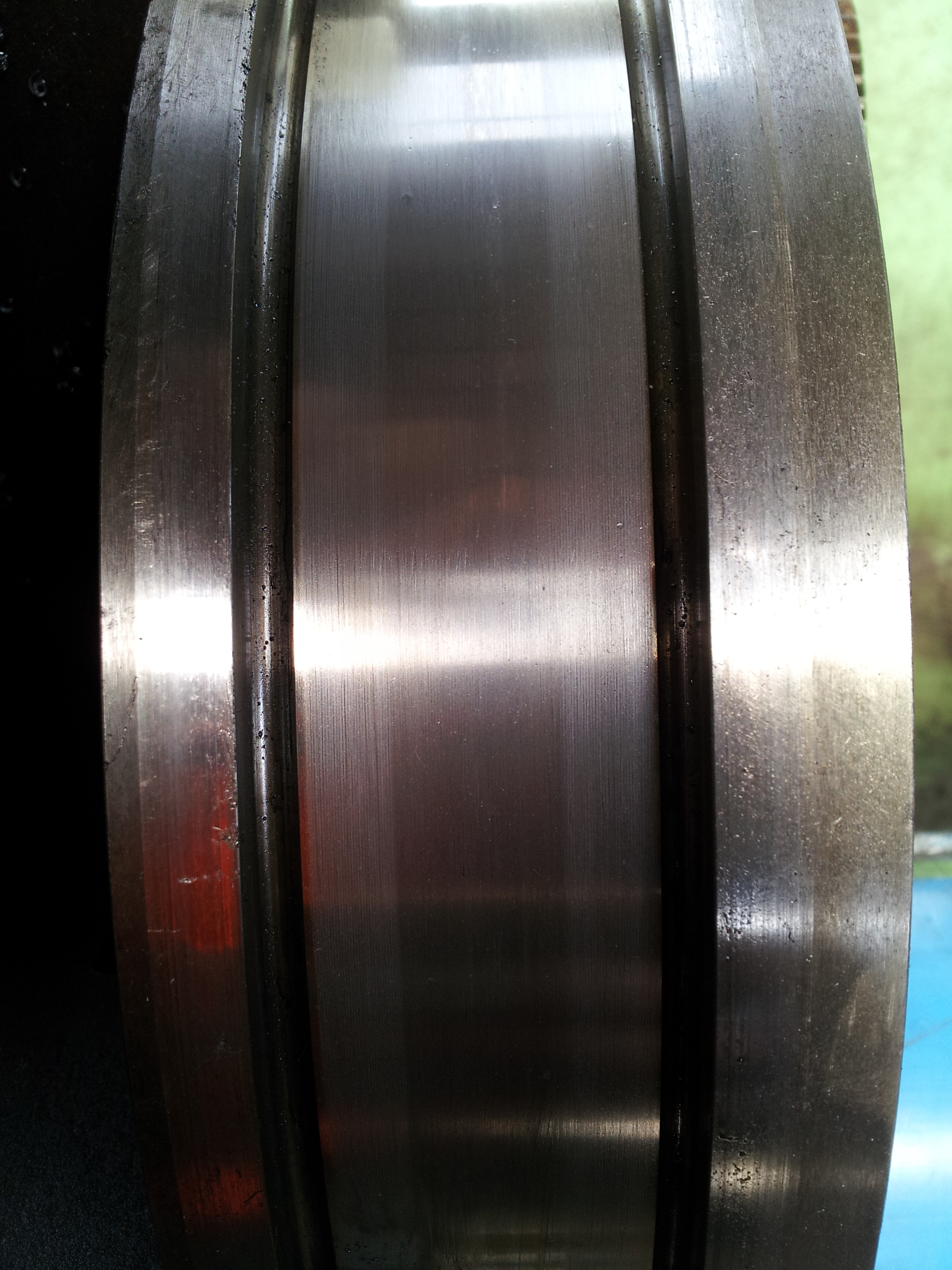

| A restored crankshaft main bearing inner race |

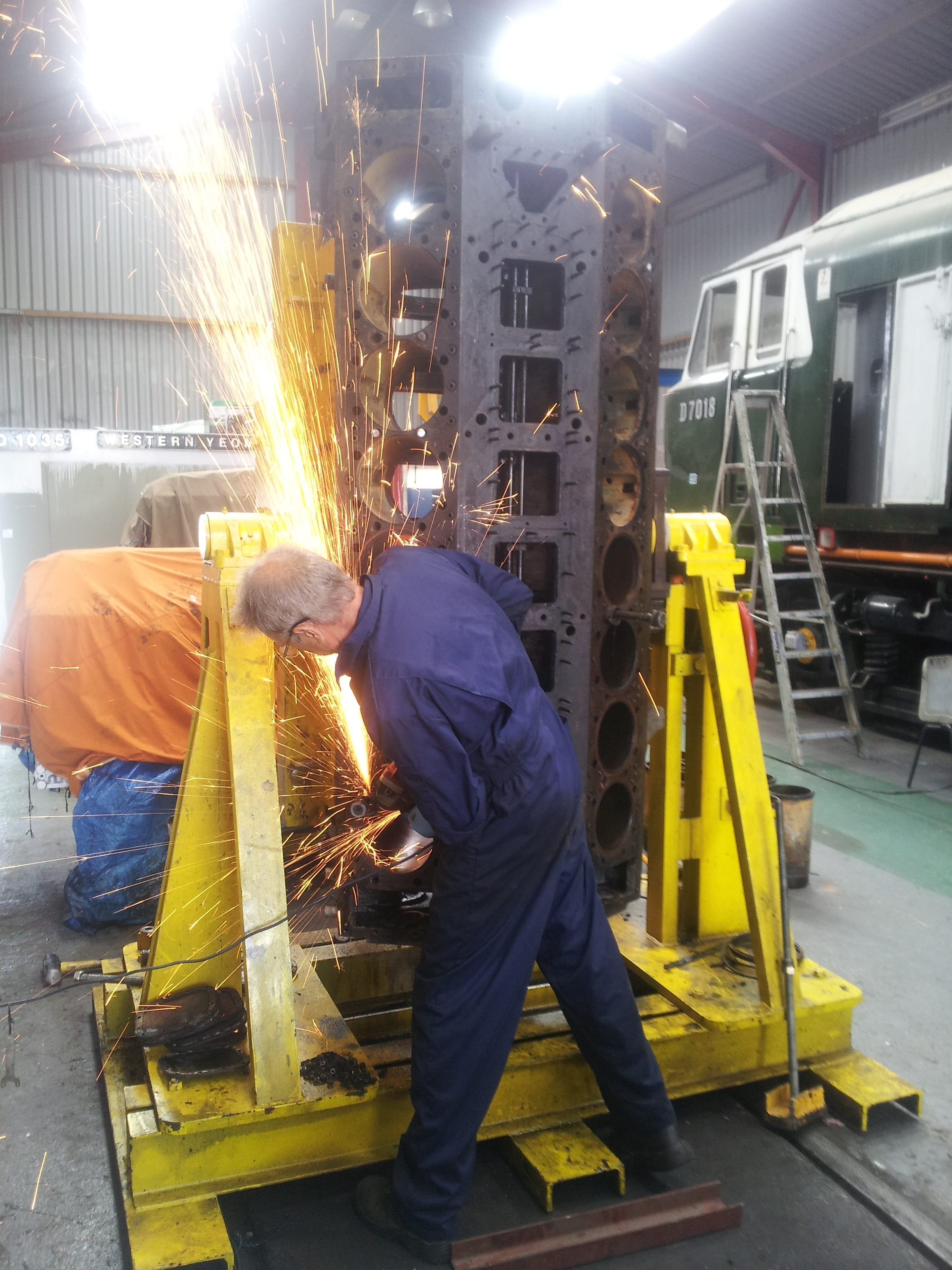

| Seized cylinder head bolts being removed to enable liner removal |
